OVERHEAD EQUIPMENT

Catenary and Contact Wires

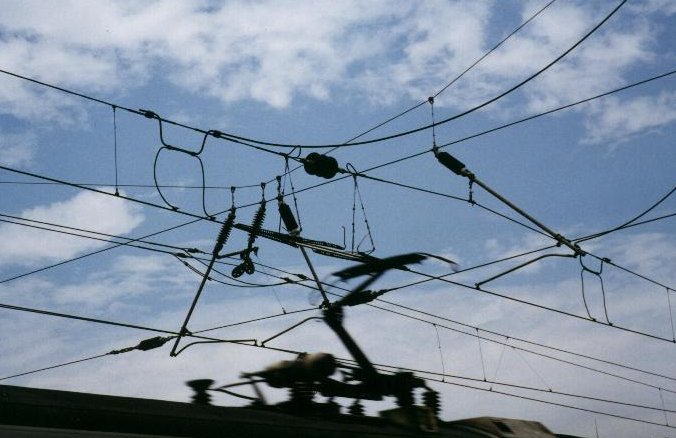

1. The overhead equipment above the track comprises of the following:-
a) A stranded cadmium copper wire of about 65 mm2 section or stranded aluminium alloy wire of about 116 mm2 section for catenary.
b) A grooved hard drawn copper contact wire of 107 mm2 cross-section (when new) supported from the catenary by means of droppers of 5 mm diameter spaced not more than 9 m apart.
2. The catenary and contact wire together have an equivalent copper section of 157 mm2. The current normally permissible on a single track is 600 A approximately, because of equivalent cross-sectional area of OHE. This current limit is based on the temperature limit of 85C in contact wire. Certain sections in Waltair-Kirandul section have the catenary and contact wires together having an equivalent copper section of 200 mm2.
3. For loop lines, sidings, yards and spur lines excluding the main running lines and first loop or lines taking off from main running line, tramway type OHE having only grooved hard drawn copper contact wire of 107 mm2 section is provided.

Height of Contact Wire

The normal height of contact wire for regulated OHE is 5.60 m above rail level. For unregulated OHE in areas with a temperature range of 4C

to 65 C, and in areas with a temperature range of 15 C to 65 C, it is 5.65 m. In certain cases, such as under over-line structures, the height may be as low as 4.65 m on BG and 4.02 m on MG.

 Span of Supporting Mast/Structures

The span normally used for supporting the OHE from masts/structure using the cantilever type bracket assembly varies from maximum 72 m on straight track to 27 m on curved track, the spans depending upon the degree of curvature. The

catenary system is normally supported on straight tracks at maximum intervals of 72 m (63 m on MG) by cantilever type arms fixed to galvanized broad flange or I section steel masts or fabricated steel structures. On curves the catenary is supported at closer intervals, the spans adopted depending upon the degree of curvature.

Stagger

The contact wire is staggered so that as the pantograph glides along, the contact wire sweeps across the current collecting strips of the pantograph upto a distance of 200 mm on either side of the centre line on straight runs and 300 mm on one side on curves.

Regulated and Unregulated OHE

OHE with automatic tensioning called 'regulated OHE' is generally provided for all main lines, but for large isolated yard and unimportant lines, automatic tensioning is dispensed with in the interest of economy and only unregulated OHE is used.
